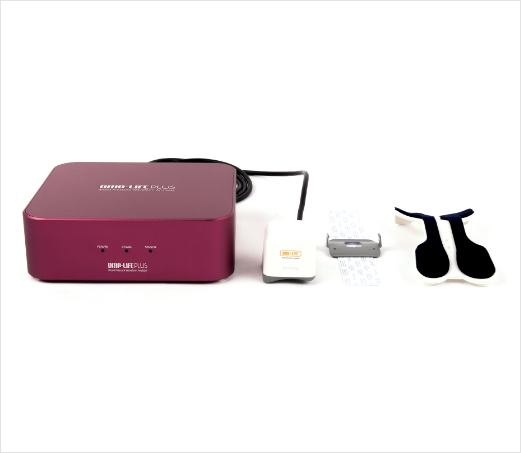

DMP-LIFE PLUS
Electric Radial Tonometry device complies with ISO 18615:2020.
Include wrist band for preventing cross-infection and improvement of measurement stability.
ISO 18615:2020 부합하는 3차원 맥영상 검사기기, 측정위치 안정성 향상 및 교차감염 예방용 밴드 적용 모델
Main functions and features

1. Non-Invasive Hemodynamic parameter measurement

2. High reproducibility by array sensor

3. 3-dimensional Pulse Image Analysis

4. Applied pressure Vs. Pulse pressure graph

5. Compare Before and After treatment

6. Cardiovascular parameter by PWA(Pulse Wave Analysis)

7. Disposable wrist band for preventing cross infection

주요기능 및 특징

1. 1축 로봇을 이용한 정밀 가압측정 시스템

2. 어레이 압력 센서를 통한 재현성 있는 혈관위치 확인

3. 3차원 맥영상 분석을 통한 객관적 맥상정보 제공

4. 정밀 가압조절에 따른 맥압 반응 그래프 제공

5. 치료 전/후 비교 메뉴

6. 맥파 분석에 의한 심박동 이상, 혈관 탄성 및 노화 관련 자료 제공

7. 교차감염 예방을 위한 일회용 손목밴드 적용

Specification
Model name DMP-Life plus Pulse Pressure
(tolerance, resolution)
30~250gf (±10% 1gf, 1gf)
Product name Blood Pressure Waveform Analyzer Communication USB to PC
Measuring Principle Radial Tonometry Method Principle of measurement Tonometry
Medical Class Class Ⅱ-a Size(mm) 225ⅹ210ⅹ75
Power Supply DC input : 12V / 2.5A, Max 30VA Weight 1.8 Kg
Pulse Beat
(tolerance, resolution)
40~200bPm (±5% 1bpm, 1bpm) Operation Environment Temperature : 10 ~ 40℃
Humidity : 30 ~ 75% (non-condensing)
Applied Pressure
(tolerance, resolution)
0~500gf (±10% 1gf, 1gf) Transport &
Storage Environment
Temperature : -20~ 60℃
Humidity : 20 ~ 85% (non-condensing)
Atmospheric Pressure : 700 ~ 1060 hPa
Applied Standards

ISO 18615 : 2020

IEC 60601-1 / EN 60601-1

IEC 60601-1-2 / EN 60601-1-2

IEC 60601-1-6 / EN 60601-1-6

IEC 62366-1 / EN 62366-1

IEC 62304 / EN 62304

ISO 10993-1,5,10,12 / EN ISO 10993-1,5,10,12

ISO 14971 / EN ISO 14971

ISO 13485 : 2016 / EN ISO 13485 : 2016
